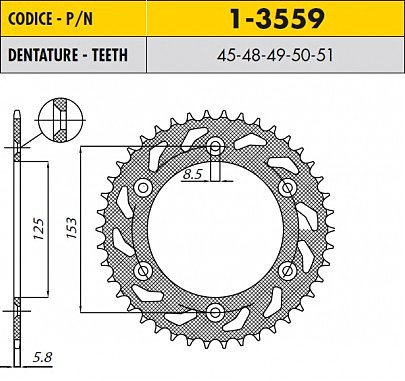

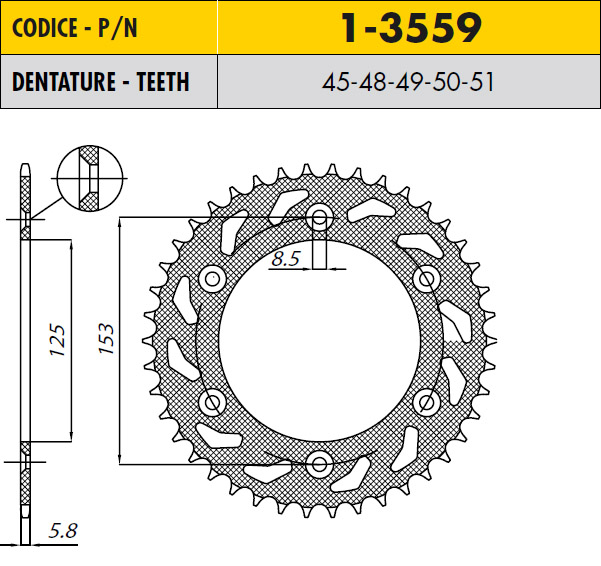

Аналог JT JTR210.49SC
Inside Diameter 125,00
Chain Pitch 520
No. Of Teeth 49
Material ACCIAIO
Thickness 5,80
No. Of Holes 6
Bolt Pattern 153,00
Holes Diameter 8,50
APPLICATIONS
MODEL CC YEAR POSITION OEM FRONT SPROCKET OEM REAR SPROCKET OEM CHAIN PITCH
HONDA
CR R 125 83 REAR — L 13 51 520
CR R 125 84 REAR — L 13 51 520
CR R 125 85 REAR — L 13 51 520
CR R 125 86 REAR — L 13 51 520
CR R 125 87 REAR — L 13 51 520
CR R 125 88 REAR — L 13 51 520
CR R 125 89 REAR — L 13 51 520
CR R 125 90 REAR — L 13 51 520
CR R 125 91 REAR — L 13 51 520
CR R 125 92 REAR — L 13 51 520
CR R 125 93 REAR — L 13 51 520
CR R 125 94 REAR — L 13 51 520
CR R 125 95 REAR — L 13 51 520
CR R 125 96 REAR — L 13 51 520
CR R 125 97 REAR — L 12 49 520
CR R 125 98 REAR — L 13 51 520
CR R 125 99 REAR — L 13 51 520
CR R 125 00 REAR — L 13 52 520
CR R 125 01 REAR — L 13 52 520
CR R 125 02 REAR — L 13 51 520
CR R 125 03 REAR — L 13 52 520
CR R 125 04 REAR — L 13 52 520
CR R 125 05 REAR — L 13 52 520
CR R 125 06 REAR — L 13 52 520
CR R 125 07 REAR — L 13 52 520
CR R 125 08 REAR — L 13 52 520
CRF F 150 03 REAR — L 13 48 520
CRF F 150 04 REAR — L 13 48 520
CRF F 150 05 REAR — L 13 48 520
CRF F 150 06 REAR — L 13 47 520
CRF F 150 07 REAR — L 13 47 520
CRF F 150 08 REAR — L 13 47 520
CRF F 150 09 REAR — L 13 47 520
CRF F 150 10 REAR — L 13 47 520
CRF F 150 11 REAR — L 13 47 520
CRF F 150 12 REAR — L 13 47 520
CRF F 230 03 REAR — L 13 50 520
CRF F 230 04 REAR — L 13 50 520
CRF F 230 05 REAR — L 13 50 520
CRF F 230 06 REAR — L 13 50 520
CRF F 230 07 REAR — L 13 50 520
CRF F 230 08 REAR — L 13 50 520
CRF F 230 09 REAR — L 13 50 520
CRF F 230 10 REAR — L 13 50 520
CRF F 230 11 REAR — L 13 50 520
CRF F 230 12 REAR — L 13 50 520
CRF L 230 08 REAR — L 13 39 520
CRF L 230 09 REAR — L 13 39 520
CR R 250 82 REAR — L 14 53 520
CR R 250 83 REAR — L 14 53 520
CR R 250 84 REAR — L 14 53 520
CR R 250 85 REAR — L 14 53 520
CR R 250 86 REAR — L 14 51 520
CR R 250 87 REAR — L 14 53 520
CR R 250 88 REAR — L 14 51 520
CR R 250 89 REAR — L 14 51 520
CR R 250 90 REAR — L 14 51 520
CR R 250 91 REAR — L 14 51 520
CR R 250 92 REAR — L 13 49 520
CR R 250 93 REAR — L 13 49 520
CR R 250 94 REAR — L 13 49 520
CR R 250 95 REAR — L 13 49 520
CR R 250 96 REAR — L 13 50 520
CR R 250 97 REAR — L 13 50 520
CR R 250 98 REAR — L 13 50 520
CR R 250 99 REAR — L 13 50 520
CR R 250 00 REAR — L 13 50 520
CR R 250 01 REAR — L 13 50 520
CR R 250 02 REAR — L 13 48 520
CR R 250 03 REAR — L 13 48 520
CR R 250 04 REAR — L 13 50 520
CR R 250 05 REAR — L 13 49 520
CR R 250 06 REAR — L 13 49 520
CR R 250 07 REAR — L 13 49 520
CR R 250 08 REAR — L 13 49 520
CRF R 250 04 REAR — R 13 51 520
CRF R 250 05 REAR — R 13 50 520
CRF R 250 06 REAR — R 13 50 520
CRF R 250 07 REAR — R 13 50 520
CRF R 250 08 REAR — R 13 50 520
CRF R 250 09 REAR — R 13 51 520
CRF R 250 10 REAR — R 13 51 520
CRF R 250 11 REAR — L 13 49 520
CRF R 250 12 REAR — L 13 49 520
CRF R 250 13 REAR — L 13 49 520
CRF R 250 14 REAR — L 13 49 520
CRF R 250 15 REAR — L 13 49 520
CRF R 250 16 REAR — L 13 49 520
CRF X 250 04 REAR — R 14 53 520
CRF X 250 05 REAR — R 14 53 520
CRF X 250 06 REAR — R 14 53 520
CRF X 250 07 REAR — R 14 53 520
CRF X 250 08 REAR — L 14 53 520
CRF X 250 09 REAR — L 14 53 520
XR R 400 96 REAR — L 15 45 520
XR R 400 97 REAR — L 15 45 520
XR R 400 98 REAR — L 15 45 520
XR R 400 99 REAR — L 15 45 520
XR R 400 00 REAR — L 15 45 520
XR R 400 01 REAR — L 15 45 520
XR R 400 02 REAR — L 15 45 520
XR R 400 03 REAR — L 15 45 520
XR R 400 04 REAR — L 15 45 520
XR R 400 05 REAR — L 15 45 520
CRE F 450 04 REAR — L 15 47 520
CRE F 450 05 REAR — L 15 47 520
CRE F 450 06 REAR — L 15 47 520
CRE F 450 07 REAR — L 15 47 520
CRF R 450 02 REAR — L 13 50 520
CRF R 450 03 REAR — L 13 50 520
CRF R 450 04 REAR — L 13 48 520
CRF R 450 05 REAR — L 13 48 520
CRF R 450 06 REAR — L 13 48 520
CRF R 450 07 REAR — L 13 48 520
CRF R 450 08 REAR — L 13 48 520
CRF R 450 09 REAR — L 13 48 520
CRF R 450 10 REAR — L 13 48 520
CRF R 450 11 REAR — L 13 48 520
CRF R 450 12 REAR — L 13 48 520
CRF R 450 13 REAR — L 13 48 520
CRF R 450 14 REAR — L 13 48 520
CRF R 450 15 REAR — L 13 48 520
CRF R 450 16 REAR — L 13 48 520
CRF X 450 05 REAR — L 13 51 520
CRF X 450 06 REAR — L 13 51 520
CRF X 450 07 REAR — L 13 51 520
CRF X 450 08 REAR — L 13 51 520
CRF X 450 09 REAR — L 13 51 520
CRF X 450 10 REAR — L 13 51 520
CRF X 450 11 REAR — L 13 51 520
CRF X 450 12 REAR — L 13 51 520
CRF X 450 13 REAR — L 13 51 520
CRF X 450 14 REAR — L 13 51 520
CRF X 450 15 REAR — L 13 51 520
CR R 500 84 REAR — L 14 51 520
CR R 500 85 REAR — L 14 51 520
CR R 500 86 REAR — L 14 51 520
CR R 500 87 REAR — L 14 51 520
CR R 500 88 REAR — L 14 51 520
CR R 500 89 REAR — L 14 51 520
CR R 500 90 REAR — L 14 51 520
CR R 500 91 REAR — L 14 51 520
CR R 500 92 REAR — L 14 49 520
CR R 500 93 REAR — L 14 49 520
CR R 500 94 REAR — L 14 49 520
CR R 500 95 REAR — L 14 49 520
CR R 500 96 REAR — L 14 49 520
CR R 500 97 REAR — L 14 49 520
CR R 500 98 REAR — L 14 49 520
CR R 500 99 REAR — L 14 49 520
CR R 500 00 REAR — L 14 49 520
CR R 500 01 REAR — L 14 49 520
XR R 650 00 REAR — L 14 48 520
XR R 650 01 REAR — L 14 48 520
XR R 650 02 REAR — L 14 48 520
XR R 650 03 REAR — L 14 48 520
XR R 650 04 REAR — L 14 48 520
XR R 650 05 REAR — L 14 48 520
XR R 650 06 REAR — L 14 48 520
HONDA-HM
CR E 125 92 REAR — L 13 49 520
CR E 125 93 REAR — L 13 49 520
CR E 125 94 REAR — L 13 49 520
CR E 125 95 REAR — L 13 49 520
CR E 125 96 REAR — L 13 49 520
CR E 125 97 REAR — L 13 49 520
CR E 125 98 REAR — L 13 49 520
CR E 125 99 REAR — L 13 49 520
CR E 125 00 REAR — L 13 49 520
CR E 125 01 REAR — L 13 49 520
CR E 125 02 REAR — L 13 49 520
CR E 125 03 REAR — L 13 47 520
CR E 125 04 REAR — L
CR E 125 05 REAR — L
CR SM 125 06 REAR — L
CR E 250 92 REAR — R 13 47 520
CR E 250 93 REAR — R 13 47 520
CR E 250 94 REAR — R 13 47 520
CR E 250 95 REAR — R 13 47 520
CR E 250 96 REAR — R 13 47 520
CR E 250 97 REAR — R 13 47 520
CR E 250 98 REAR — R 13 47 520
CR E 250 99 REAR — R 13 47 520
CR E 250 00 REAR — R 13 47 520
CR E 250 01 REAR — R 13 47 520
CR E 250 02 REAR — R 13 47 520
CR E 250 03 REAR — L 13 47 520
CR E 250 04 REAR — L 13 47 520
CR E 250 05 REAR — L 13 47 520
CR E SUPERMOTARD 250 03 REAR — L 15 47 520
CR E SUPERMOTARD 250 04 REAR — L 14 44 520
CR E SUPERMOTARD 250 05 REAR — L 14 44 520
CRE F 250 04 REAR — L 13 51 520
CRE F 250 05 REAR — L 13 51 520
CRE X 250 05 REAR — L 14 53 520
CRE X 250 06 REAR — L 14 53 520
CRF R 250 08 REAR — L 13 49 520
CRF R 250 09 REAR — L 13 49 520
CRF R 250 10 REAR — L 13 49 520
CRF R 250 11 REAR — L 13 49 520
CRF R 250 12 REAR — L 13 49 520
CRF R 250 13 REAR — L 13 49 520
CRF X SUPERMOTARD 250 04 REAR — L
CRF X SUPERMOTARD 250 05 REAR — L
CRE F 450 02 REAR — L 15 47 520
CRE F 450 03 REAR — L 15 47 520
CRF R 450 04 REAR — L 13 48 520
CRF R 450 05 REAR — L 13 48 520
CRF R 450 06 REAR — L 13 48 520
CRF R 450 07 REAR — L 13 48 520
CRF R 450 08 REAR — L 13 48 520
CRF R 450 09 REAR — L 13 48 520
CRF R 450 10 REAR — L 13 48 520
CRF R 450 11 REAR — L 13 48 520
CRF R 450 12 REAR — L 13 48 520
CRF R 450 13 REAR — L 13 48 520
CRF R 450 14 REAR — L 13 48 520
CRF SUPERMOTARD 450 02 REAR — L 15 47 520
CRF SUPERMOTARD 450 03 REAR — L 15 47 520
CRF SUPERMOTARD 450 04 REAR — L 15 47 520
CRF SUPERMOTARD 450 05 REAR — L 15 47 520
CRF X 450 05 REAR — L 12 51 520
CRF X 450 06 REAR — L 12 51 520
CR E 500 92 REAR — L 14 47 520
CR E 500 93 REAR — L 14 47 520
CR E 500 94 REAR — L 14 47 520
CR E 500 95 REAR — L 14 49 520
CR E 500 96 REAR — L 14 49 520
CR E 500 97 REAR — L 14 47 520
CR E 500 98 REAR — L 14 47 520
CR E 500 99 REAR — L 14 47 520
CR E 500 00 REAR — L 14 47 520
