Описание товара: SS 33317

Аналог JT JTF512.17RB

Производитель: SUNSTAR

Кратность отпуска: 1 шт.

Звезда передняя Sunstar

- Изготовлена из закаленной стали для достижения максимальной прочности и износостойкости.

- Покрыта специальным антикоррозийным покрытием.

- Превосходное оригинальное качество.

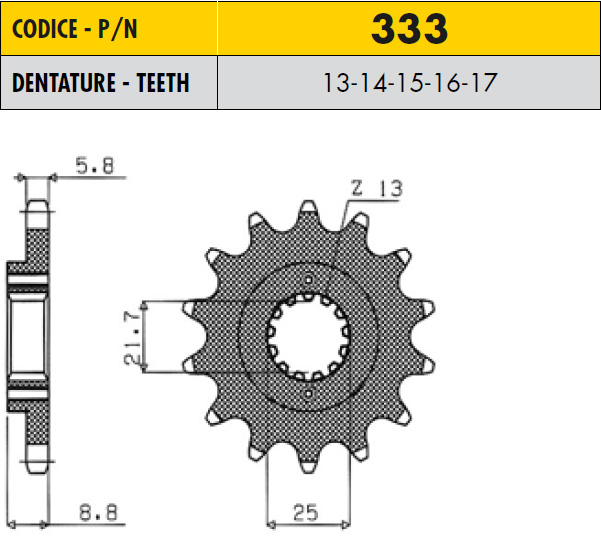

Chain Pitch 520

No. Of Teeth 17

No. Of Broaching Teeth 13,00

Broaching Diameter 25,00

Material SCM420

Thickness 5,80

Outer Diameter 92,10

No. Of Holes 2

Bolt Pattern 42,00

APPLICATIONS

MODEL CC YEAR POSITION OEM FRONT SPROCKET OEM REAR SPROCKET OEM CHAIN PITCH

KAWASAKI

ELIMINATOR 250 88 FRONT — L 14 44 520

ELIMINATOR 250 89 FRONT — L 14 44 520

ELIMINATOR 250 90 FRONT — L 14 44 520

ELIMINATOR 250 91 FRONT — L 14 44 520

ELIMINATOR 250 92 FRONT — L 14 44 520

ELIMINATOR 250 93 FRONT — L 14 44 520

ELIMINATOR 250 94 FRONT — L 14 44 520

ELIMINATOR 250 95 FRONT — L 14 44 520

ELIMINATOR 250 96 FRONT — L 14 40 520

ELIMINATOR 250 97 FRONT — L 14 40 520

ELIMINATOR 250 98 FRONT — L 14 40 520

ELIMINATOR 250 99 FRONT — L 14 40 520

ELIMINATOR 250 00 FRONT — L 14 40 520

ELIMINATOR 250 01 FRONT — L 14 40 520

ELIMINATOR 250 02 FRONT — L 13 40 520

ELIMINATOR 250 03 FRONT — L 13 40 520

GPZ 400 84 FRONT — L 16 38 520

GPZ 400 85 FRONT — L 16 38 520

GPZ 400 86 FRONT — L 16 38 520

GPZ 400 87 FRONT — L 16 38 520

GPZ (27CV) 400 84 FRONT — L 16 42 520

GPZ (27CV) 400 85 FRONT — L 16 42 520

GPZ (27CV) 400 86 FRONT — L 16 42 520

GPZ (27CV) 400 87 FRONT — L 16 42 520

GPZ (27CV) 400 88 FRONT — L 16 42 520

GPZ (27CV) 400 89 FRONT — L 16 42 520

GPZ (27CV) 400 90 FRONT — L 16 42 520

GPZ (27CV) 400 91 FRONT — L 16 42 520

GPZ (27CV) 400 92 FRONT — L 16 42 520

GPZ (27CV) 400 93 FRONT — L 16 42 520

GPZ (27CV) 400 94 FRONT — L 16 42 520

GPZ (27CV) 400 95 FRONT — L 16 42 520

GPZ (27CV) 400 96 FRONT — L 16 42 520

GPZ (27CV) 400 97 FRONT — L 16 42 520

ZX 400 84 FRONT — L 16 42 520

ZX 400 85 FRONT — L 16 42 520

ZX 400 86 FRONT — L 16 42 520

ZX 400 87 FRONT — L 16 42 520

ZXR 400 91 FRONT — L 15 45 520

ZXR 400 92 FRONT — L 15 45 520

ZXR 400 93 FRONT — L 15 45 520

ZXR 400 94 FRONT — L 15 45 520

ZXR 400 95 FRONT — L 15 45 520

ZXR 400 96 FRONT — L 15 45 520

ZXR 400 97 FRONT — L 15 45 520

ZXR 400 98 FRONT — L 15 45 520

ZXR 400 99 FRONT — L 15 45 520

ZXR 400 00 FRONT — L 15 45 520

ZXR 400 01 FRONT — L 15 45 520

ZXR 400 02 FRONT — L 15 45 520

ZXR R 400 90 FRONT — L 15 45 520

EN VULCAN 500 96 FRONT — L 16 42 520

EN VULCAN 500 97 FRONT — L 16 42 520

EN VULCAN 500 98 FRONT — L 16 42 520

EN VULCAN 500 99 FRONT — L 16 42 520

EN VULCAN 500 00 FRONT — L 16 42 520

EN VULCAN 500 01 FRONT — L 16 42 520

EN VULCAN 500 02 FRONT — L 16 42 520

EN VULCAN 500 03 FRONT — L 16 42 520

EN VULCAN 500 04 FRONT — L 16 42 520

EN VULCAN 500 05 FRONT — L 16 42 520

EN VULCAN 500 06 FRONT — L 16 42 520

EN VULCAN 500 07 FRONT — L 16 42 520

EN VULCAN 500 08 FRONT — L 16 42 520

EN VULCAN 500 09 FRONT — L 16 42 520

ER5 500 97 FRONT — L 17 42 520

ER5 500 98 FRONT — L 17 42 520

ER5 500 99 FRONT — L 17 42 520

ER5 500 00 FRONT — L 17 42 520

ER5 500 01 FRONT — L 17 42 520

ER5 500 02 FRONT — L 17 42 520

ER5 500 03 FRONT — L 17 42 520

ER5 500 04 FRONT — L 17 42 520

ER5 500 05 FRONT — L 17 42 520

ER5 500 06 FRONT — L 17 42 520

EX R NINJA 500 06 FRONT — L 16 41 520

EX R NINJA 500 07 FRONT — L 16 41 520

EX R NINJA 500 08 FRONT — L 16 41 520

EX R NINJA 500 09 FRONT — L 16 41 520

GPZ S 500 87 FRONT — L 16 42 520

GPZ S 500 88 FRONT — L 16 42 520

GPZ S 500 89 FRONT — L 16 42 520

GPZ S 500 90 FRONT — L 16 42 520

GPZ S 500 91 FRONT — L 16 42 520

GPZ S 500 92 FRONT — L 16 42 520

GPZ S 500 93 FRONT — L 16 42 520

GPZ S 500 94 FRONT — L 16 41 520

GPZ S 500 95 FRONT — L 16 41 520

GPZ S 500 96 FRONT — L 16 41 520

GPZ S 500 97 FRONT — L 16 41 520

GPZ S 500 98 FRONT — L 16 41 520

GPZ S 500 99 FRONT — L 16 41 520

GPZ S 500 00 FRONT — L 16 41 520

GPZ S 500 01 FRONT — L 16 41 520

GPZ S 500 02 FRONT — L 16 41 520

GPZ S 500 03 FRONT — L 16 41 520

GPZ S 500 04 FRONT — L 16 41 520

GPZ S 500 05 FRONT — L 16 41 520

GPZ S 500 06 FRONT — L 16 41 520

KLE 500 91 FRONT — L 16 44 520

KLE 500 92 FRONT — L 16 44 520

KLE 500 93 FRONT — L 16 44 520

KLE 500 94 FRONT — L 16 44 520

KLE 500 95 FRONT — L 16 44 520

KLE 500 96 FRONT — L 16 44 520

KLE 500 97 FRONT — L 17 46 520

KLE 500 98 FRONT — L 17 46 520

KLE 500 99 FRONT — L 17 46 520

KLE 500 00 FRONT — L 17 46 520

KLE 500 01 FRONT — L 17 46 520

KLE 500 02 FRONT — L 17 46 520

KLE 500 03 FRONT — L 17 46 520

KLE 500 04 FRONT — L 17 46 520

KLE 500 05 FRONT — L 17 44 520

KLE 500 06 FRONT — L 17 44 520

KLE 500 07 FRONT — L 17 44 520

KLR 500 88 FRONT — L 16 44 520

GPZ UNITRAK 550 84 FRONT — L 16 38 520

GPZ UNITRAK 550 85 FRONT — L 16 38 520

GPZ UNITRAK 550 86 FRONT — L 16 38 520

GPZ UNITRAK 550 87 FRONT — L 16 38 520

GPZ UNITRAK 550 88 FRONT — L 16 38 520

GPZ UNITRAK 550 89 FRONT — L 16 38 520

GPZ UNITRAK 550 90 FRONT — L 16 38 520

GPZ UNITRAK 550 91 FRONT — L 16 38 520

GPZ UNITRAK 550 92 FRONT — L 16 38 520

GPZ UNITRAK 550 93 FRONT — L 16 38 520

ZEPHYR 550 90 FRONT — L 16 38 520

ZEPHYR 550 91 FRONT — L 16 38 520

ZEPHYR 550 92 FRONT — L 16 38 520

ZEPHYR 550 93 FRONT — L 16 38 520

ZEPHYR 550 94 FRONT — L 16 38 520

ZEPHYR 550 95 FRONT — L 16 38 520

ZEPHYR 550 96 FRONT — L 16 38 520

ZEPHYR 550 97 FRONT — L 16 38 520

ZEPHYR 550 98 FRONT — L 16 38 520

ZEPHYR 550 99 FRONT — L 16 38 520

ZEPHYR 550 00 FRONT — L 16 38 520

KLR 600 84 FRONT — L 15 43 520

ZX9R NINJA (Racing 520 Conversion) 900 00 FRONT — L 16 41 530

ZX9R NINJA (Racing 520 Conversion) 900 01 FRONT — L 16 41 530

SUZUKI

GS E 500 94 FRONT — L 16 39 520

GS E 500 95 FRONT — L 16 39 520

GS E 500 96 FRONT — L 16 39 520

GS E 500 97 FRONT — L 16 39 520

GS E 500 98 FRONT — L 16 39 520

GS E 500 99 FRONT — L 16 39 520

GS E 500 00 FRONT — L 16 39 520

GS E 500 01 FRONT — L 16 39 520

GS E 500 02 FRONT — L 16 39 520

GS E 500 03 FRONT — L 16 39 520

GS E 500 04 FRONT — L 16 39 520

GS E 500 05 FRONT — L 16 39 520

GS E 500 06 FRONT — L 16 39 520

GS E 500 07 FRONT — L 16 39 520

GS F 500 03 FRONT — L 16 39 520

GS F 500 04 FRONT — L 16 39 520

GS F 500 05 FRONT — L 16 39 520

GS F 500 06 FRONT — L 16 39 520

GS F 500 07 FRONT — L 16 39 520

GS F 500 08 FRONT — L 16 39 520

GS F 500 09 FRONT — L 16 39 520

GS F 500 10 FRONT — L 16 39 520

GSX R (Racing 520 Conversion) 600 01 FRONT — L 16 45 525

GSX R (Racing 520 Conversion) 600 02 FRONT — L 16 45 525

GSX R (Racing 520 Conversion) 600 03 FRONT — L 16 45 525

GSX R (Racing 520 Conversion) 600 04 FRONT — L 16 45 525

GSX R (Racing 520 Conversion) 600 05 FRONT — L 16 45 525

GSX R (Racing 520 Conversion) 600 06 FRONT — L 16 43 525

GSX R (Racing 520 Conversion) 600 07 FRONT — L 16 43 525

GSX R (Racing 520 Conversion) 600 08 FRONT — L 16 43 525

GSX R (Racing 520 Conversion) 600 09 FRONT — L 16 43 525

GSX R (Racing 520 Conversion) 600 10 FRONT — L 16 43 525

GSX R (Racing 520 Conversion) 600 11 FRONT — L 16 43 525

GSX R (Racing 520 Conversion) 600 12 FRONT — L 16 43 525

GSX R (Racing 520 Conversion) 600 13 FRONT — L 16 43 525

GSX R (Racing 520 Conversion) 600 14 FRONT — L 16 43 525

GSX R (Racing 520 Conversion) 600 15 FRONT — L 16 43 525

GSX R 520 Conv. Marchesini Wheels 600 01 FRONT — L 16 45 525

GSX R 520 Conv. Marchesini Wheels 600 02 FRONT — L 16 45 525

GSX R 520 Conv. Marchesini Wheels 600 03 FRONT — L 16 45 525

GSX R 520 Conv. Marchesini Wheels 600 04 FRONT — L 16 45 525

GSX R 520 Conv. Marchesini Wheels 600 05 FRONT — L 16 45 525

GSX R 520 Conv. Marchesini Wheels 600 06 FRONT — L 16 43 525

GSX R 520 Conv. Marchesini Wheels 600 07 FRONT — L 16 43 525

GSX R 520 Conv. Marchesini Wheels 600 08 FRONT — L 16 43 525

GSX R 520 Conv. Marchesini Wheels 600 09 FRONT — L 16 43 525

GSX R 520 Conv. Marchesini Wheels 600 10 FRONT — L 16 43 525

GSX R 520 Conv. Marchesini Wheels 600 11 FRONT — L 16 43 525

GSX R 520 Conv. Marchesini Wheels 600 12 FRONT — L 16 43 525

GSX R 520 Conv. Marchesini Wheels 600 13 FRONT — L 16 43 525

GSX R 520 Conv. Marchesini Wheels 600 14 FRONT — L 16 43 525

GSX R 520 Conv. Marchesini Wheels 600 15 FRONT — L 16 43 525

GSX R 520 Conv. OZ/Marvic Wheels 600 01 FRONT — L 16 45 525

GSX R 520 Conv. OZ/Marvic Wheels 600 02 FRONT — L 16 45 525

GSX R 520 Conv. OZ/Marvic Wheels 600 03 FRONT — L 16 45 525

GSX R 520 Conv. OZ/Marvic Wheels 600 04 FRONT — L 16 45 525

GSX R 520 Conv. OZ/Marvic Wheels 600 05 FRONT — L 16 45 525

GSX R 520 Conv. OZ/Marvic Wheels 600 06 FRONT — L 16 43 525

GSX R 520 Conv. OZ/Marvic Wheels 600 07 FRONT — L 16 43 525

GSX R 520 Conv. OZ/Marvic Wheels 600 08 FRONT — L 16 43 525

GSX R 520 Conv. OZ/Marvic Wheels 600 09 FRONT — L 16 43 525

GSX R 520 Conv. OZ/Marvic Wheels 600 10 FRONT — L 16 43 525

GSX R 520 Conv. OZ/Marvic Wheels 600 11 FRONT — L 16 43 525

GSX R 520 Conv. OZ/Marvic Wheels 600 12 FRONT — L 16 43 525

GSX R 520 Conv. OZ/Marvic Wheels 600 13 FRONT — L 16 43 525

GSX R 520 Conv. OZ/Marvic Wheels 600 14 FRONT — L 16 43 525

GSX R 520 Conv. OZ/Marvic Wheels 600 15 FRONT — L 16 43 525

GSX R (Racing 520 Conversion) 1000 01 FRONT — L 17 42 530

GSX R (Racing 520 Conversion) 1000 02 FRONT — L 17 42 530

GSX R (Racing 520 Conversion) 1000 03 FRONT — L 17 42 530

GSX R (Racing 520 Conversion) 1000 04 FRONT — L 17 42 530

GSX R (Racing 520 Conversion) 1000 05 FRONT — L 17 42 530

GSX R (Racing 520 Conversion) 1000 06 FRONT — L 17 42 530

GSX R (Racing 520 Conversion) 1000 07 FRONT — L 17 43 530

GSX R (Racing 520 Conversion) 1000 08 FRONT — L 17 43 530

GSX R 520 Conv. Marchesini Wheels 1000 01 FRONT — L 17 42 530

GSX R 520 Conv. Marchesini Wheels 1000 02 FRONT — L 17 42 530

GSX R 520 Conv. Marchesini Wheels 1000 03 FRONT — L 17 42 530

GSX R 520 Conv. Marchesini Wheels 1000 04 FRONT — L 17 42 530

GSX R 520 Conv. Marchesini Wheels 1000 05 FRONT — L 17 42 530

GSX R 520 Conv. Marchesini Wheels 1000 06 FRONT — L 17 42 530

GSX R 520 Conv. Marchesini Wheels 1000 07 FRONT — L 17 43 530

GSX R 520 Conv. Marchesini Wheels 1000 08 FRONT — L 17 43 530

GSX R 520 Conv. OZ/Marvic Wheels 1000 01 FRONT — L 17 42 530

GSX R 520 Conv. OZ/Marvic Wheels 1000 02 FRONT — L 17 42 530

GSX R 520 Conv. OZ/Marvic Wheels 1000 03 FRONT — L 17 42 530

GSX R 520 Conv. OZ/Marvic Wheels 1000 04 FRONT — L 17 42 530

GSX R 520 Conv. OZ/Marvic Wheels 1000 05 FRONT — L 17 42 530

GSX R 520 Conv. OZ/Marvic Wheels 1000 06 FRONT — L 17 42 530

GSX R 520 Conv. OZ/Marvic Wheels 1000 07 FRONT — L 17 43 530

GSX R 520 Conv. OZ/Marvic Wheels 1000 08 FRONT — L 17 43 530

YAMAHA

FZR R (Racing 520 Conversion) 600 94 FRONT — L 15 47 530

FZR R (Racing 520 Conversion) 600 95 FRONT — L 15 47 530

FZR R (Racing 520 Conversion) 600 96 FRONT — L 15 47 530

FZR R (Racing 520 Conversion) 600 97 FRONT — L 15 47 530

FZS FAZER (Racing 520 Conversion) 600 98 FRONT — L 15 48 530

FZS FAZER (Racing 520 Conversion) 600 99 FRONT — L 15 48 530

FZS FAZER (Racing 520 Conversion) 600 00 FRONT — L 15 48 530

FZS FAZER (Racing 520 Conversion) 600 01 FRONT — L 15 48 530

FZS FAZER (Racing 520 Conversion) 600 02 FRONT — L 15 48 530

FZS FAZER (Racing 520 Conversion) 600 03 FRONT — L 15 48 530

YZF R THUNDERCAT (Racing 520 conversion) 600 94 FRONT — L 15 47 530

YZF R THUNDERCAT (Racing 520 conversion) 600 95 FRONT — L 15 47 530

YZF R THUNDERCAT (Racing 520 conversion) 600 96 FRONT — L 15 47 530

YZF R THUNDERCAT (Racing 520 conversion) 600 97 FRONT — L 15 47 530

YZF R THUNDERCAT (Racing 520 conversion) 600 98 FRONT — L 15 47 530

YZF R THUNDERCAT (Racing 520 conversion) 600 99 FRONT — L 15 47 530

YZF R THUNDERCAT (Racing 520 conversion) 600 00 FRONT — L 15 47 530

YZF R THUNDERCAT (Racing 520 conversion) 600 01 FRONT — L 15 47 530

YZF R THUNDERCAT (Racing 520 conversion) 600 02 FRONT — L 15 47 530

YZF R THUNDERCAT (Racing 520 conversion) 600 03 FRONT — L 15 47 530

YZF R THUNDERCAT (Racing 520 conversion) 600 04 FRONT — L 15 47 530
