Рем.комплект прогрессии подвески ALLBALLS 27-1065

Рем.комплект прогрессии подвески ALLBALLS 27-1065
Артикул: V1297527
Описание товара:

Описание товара: ALLBALLS 27-1065

Производитель: ALLBALLS

Кратность отпуска: 1 комп

Рем.комплект прогрессии подвески

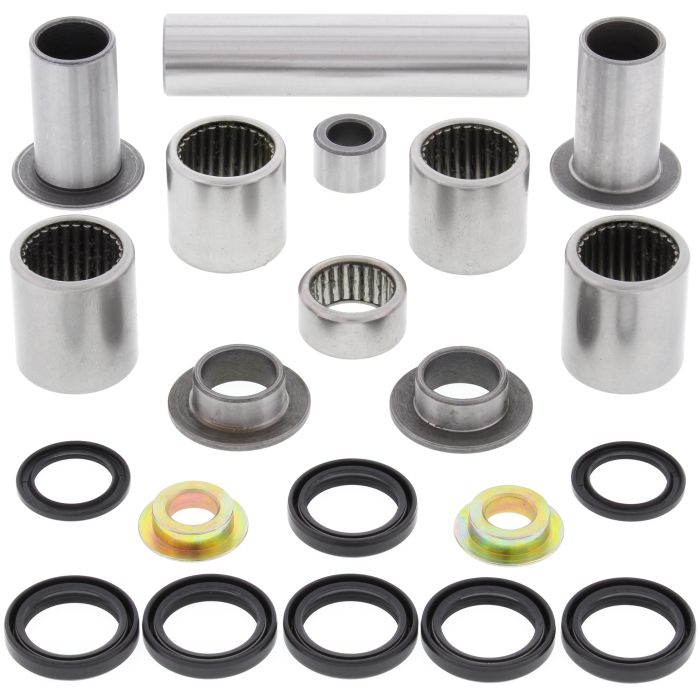

DESCRIPTION QTY PER KIT

Seal 2

Seal 6

Needle Bearing 2

Needle Bearing 2

Needle Bearing 1

Needle Bearing Shaft 2

Needle Bearing Shaft 2

Needle Bearing Shaft 1

Needle Bearing Shaft 1

Bushing 2

APPLICATION Linkage Bearing Kit Yamaha WR250F 02-04, WR426F 02, WR450F 03-04, YZ125 02-04, YZ250 02-04, YZ250F 02-04, YZ426F 02, YZ450F 03-04

DISTRIBUTOR NAME DISTRIBUTOR REFERENCE

Automatic AB271065

Bihr 774142

Gamma 27-1065

Kimpex 206500

MTA AB27-1065

Matthies 7730381

Motovan 127-1065

Parts Canada A27-1065

Parts Unlimited A27-1065

Thibault 237271065

Tucker Rocky 413754

Western Power Sports 22-71065

Swing Arm Bearing Installation

1. Before installing the needle bearings make sure the swing arm or linkage bearing bores are clean and free from

burrs. It is also helpful to have the entire swing arm or linkage clean so that dirt does not get into the bearings.

2. The needle bearings should be installed with a press and a tool that is just a bit smaller than the outer diameter

of the needle bearing (a socket often works well for this). A vice may work if no press is available. Never use

hammer blows to install the needle bearings. Hammer blows will damage the needle bearings.

• NOTE: Heating the bearing bore of the swing arm or linkage will make bearing installation easier.

3. Once the bearings are installed, grease them excessively. The more grease the better.

4. When installing the seals, grease the inner seal surface that contacts the mating parts. The grease on the seals

helps lubricate the seal as well as making an additional barrier to dirt and water.

Yamaha WR250F 02-04, WR426F 02, WR450F 03-04, YZ125 02-04, YZ250 02-04, YZ250F 02-04, YZ426F 02, YZ450F 03-04


3948 грн.
Предложить соответствие модели
Характеристики
Отзывы
Доставка и оплата
В наличии мало
Данный товар отправляется на следующий день
Подходит к моделям: YAMAHA.
